PMC-8G9G-1D6-SFF Preliminary

PMI Model No. PMC-8G9G-1D6-SFF is a Monopulse Comparator operating over the 8.0 to 9.0 GHz frequency range.  This model offers a maximum 1.6 dB insertion loss while maintaining a maximum amplitude balance of ±0.5 dB and a maximum phase balance of ±5°.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min: 8.0 GHz
Frequency Max: 9.0 GHz
Phase Balance: ±5° dB Max
Insertion Loss: 1.6 dB Max
Isolation: 20 dB Min
Frequency: 8.0 to 9.0 GHz
Amplitude Balance: ±0.5 dB Max
VSWR: 1.5:1 Max
Impedance: 50 Ohm
Power Handling: Average: 10 Watt Max
Peak: 0.1 kW Max
Connectors: SMA Female
Finish: Painted Blue

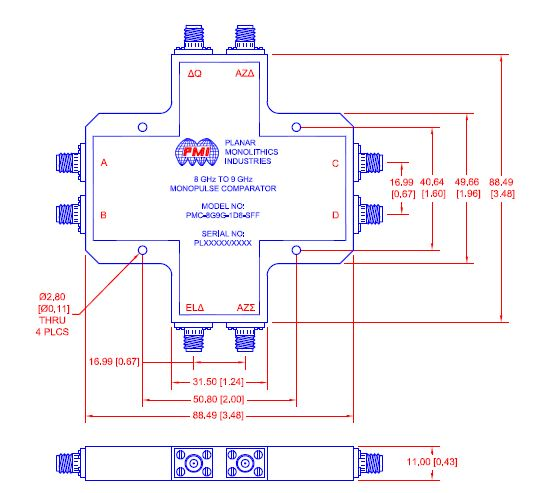

Size: 3.48" x 3.48" x 0.43"
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +125 °C (Storage)
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
