PFA-DC18-20W-20DB-SMF Active

Fixed Attenuator

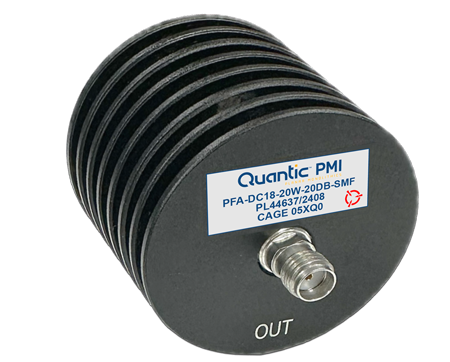

Quantic PMI Model PFA-DC18-20W-20DB-SMF is a fixed attenuator that operates over the frequency range of DC to 18.0 GHz. with 20 W of power handling. This model is outfitted with a SMA male input connector and a SMA female output connector.

Product Specifications

General Parameters:
Status: Active
Frequency Range: DC to 18.0 GHz
Frequency Min: DC
Frequency Max: 18.0 GHz
Attenuation Value: 20 dB Typ
Connectors: SMA (M)/(F)
VSWR (DC to 6.0 GHz): 1.3:1 Max
VSWR (6.0 to 12.4 GHz): 1.3:1 Max
VSWR (12.4 to 18.0 GHz): 1.4:1 Max
Input Power, CW: 20 W Max
Finish: Painted Black
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +125 °C (Non-Operating)
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A

3D View
