PFA-DC18-20dB-10W-NFM
Active
Fixed Attenuator
Quantic PMI Model PFA-DC18-20dB-10W-NFM is a 10 W fixed attenuator that operates over the frequency range of DC to 18 GHz and provides 20 dB of attenuation. Package size is 3.031" x Ø1.496" with Type N connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | DC to 18 |
|---|
| Frequency Min (GHz): | DC |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Value (dB): | 20 dB Nom |
|---|
| Impedance (Ohms): | 50 |
|---|
| VSWR: | 1.4 Max (15.6 dB Min) |
|---|
| Input Power: | 10 W |
|---|
| Deviation (±dB): | DC to 4 GHz: ±0.5 dB
4 to 8 GHz: ±0.6 dB
8 to 12.4 GHz: ±0.7 dB
12.4 to 18 GHz: ±1 dB |
|---|
| Connectors: | N-Type Male / Female |
|---|

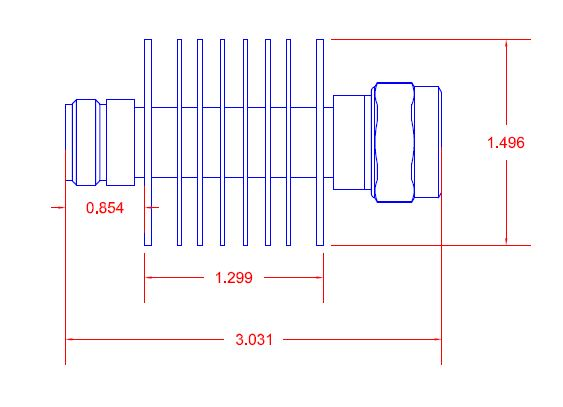

| Size: | 3.031" x Ø1.496" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 106 |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. G |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. B |
|---|
