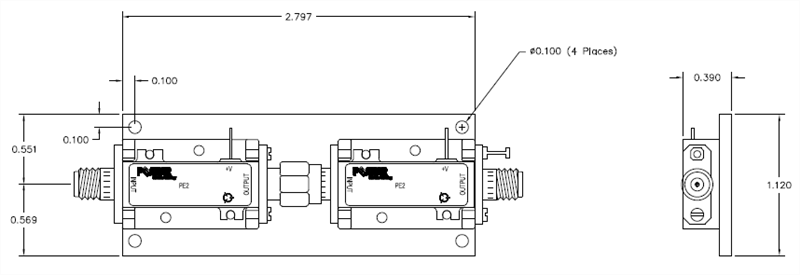

Quantic PMI Model PE2-60-15G16G-3R5-14-12-SFF is a 15 to 16 GHz Low Noise Amplifier designed for military and industrial applications that provides 60 dB of gain while maintaining a gain flatness of ±1 dB over the operating frequency with a noise figure of 3.5 dB typical and offers an OP1dB of 14 dBm minimum. Overall package size is 2.797" x 1.12" x 0.39" and the individual amplifiers are supplied in our PE2 housing that can be used as an SMA connectorized or surface mounted component.
