PE2-12-30R040R0-5R5-18-12-292FF Active

Low Noise Amplifier

Product Feature

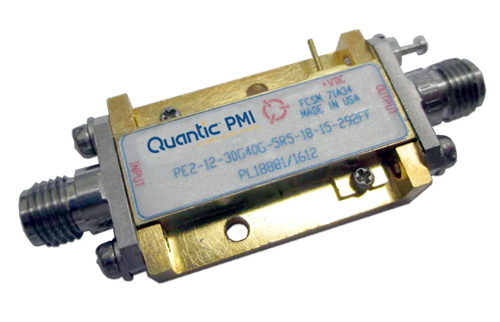

Quantic PMI Model PE2-12-30R040R0-5R5-18-12-292FF is a Low Noise Amplifier designed for military and industrial applications that operates over the 30 to 40 GHz frequency range with a typical gain of 12 dB and maintains a gain flatness of ±2 dB with a maximum noise figure of 5.5 dB and offers an OP1dB of 18 dBm.  Supplied in our PE2  housing that can be used as an 2.92mm connectorized or surface mounted component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 30 to 40
Frequency Min (GHz): 30
Frequency Max (GHz): 40
Gain (dB): 12 dB Typ
Gain (dB) - Measured: 12 dB Typ - Measured 13.7 dB
Gain Flatness (dB): ±2 dB Max
Gain Flatness (Measured): ±2 dB Max - Measured ±1 0 dB
Noise Figure (dB): 5.5 dB Typ
OP1dB (dBm): 18 dBm Min
VSWR In/Out: 2.5:1 Typ - Measured 1.75:1/ 1.97:1(In/Out)
DC Voltage Supply (VDC): +12 to +15 VDC
DC Current Draw: 300 mA Max - Measured 237 mA
Connectors: 2.92mm Female - removable
Size: 1.8" x 0.71" x 0.29"
Housing: PE2
Environmental Ratings:
Temperature (Operating): -20 ºC to +70 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
