PBT-50G-185FM Preliminary

Bias Tee

Quantic PMI Model PBT-50G-185FM is a 4 kHz to 50 GHz BIAS Tee that has a maximum insertion loss of 2.5 dB. BIAS Tee comes in a small 1.37" x 1.0" x 0.6" package outfitted with 1.85mm connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Min (GHz): 0.000004
Frequency Max (GHz): 50
Insertion Loss (dB): 2.5 dB Max
Input Power: 30 dBm CW Max
DC Supply: 30 VDC @ 500 mA Max
VSWR: 2.0:1 Max
Connectors: RF: 1.85mm female / male
VDC: SMC female and Solder Pin

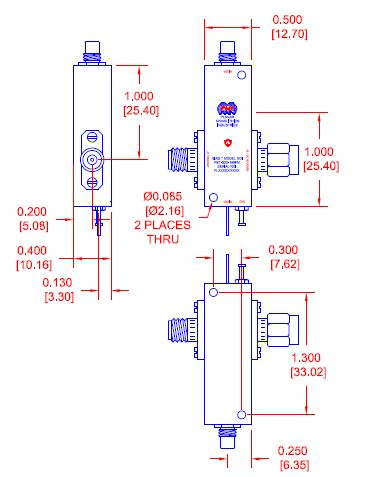

Size: 1.37" x 1.00" x 0.60"
Environmental Ratings::
Temperature: -55 °C to +85 °C (Operating)
-65 °C to +117 °C (Storage)
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
