PA-40-17D521D5-5R0-36-12-292FF Active

Medium Power Low Noise Amplifier

PA-40-17D521D5-5R0-36-12-292FF
Product Feature

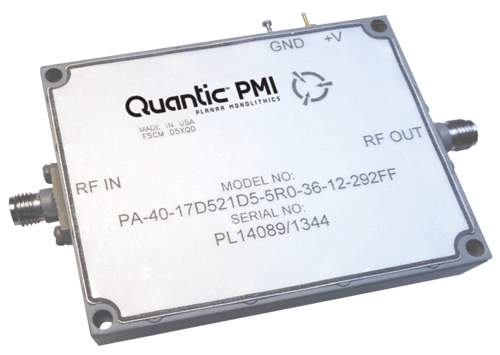

Quantic PMI Model PA-40-17D521D5-5R0-36-12-292FF is a medium power low noise amplifier that operates over the frequency range of 15.7 to 21.5 GHz with a nominal gain of 40 dB typical with a maximum gain flatness of ±1.75 dB and a typical noise figure of 5 dB. Supplied with SMA Female connectors in a housing that measures 2.6" x 2" x 0.5".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 17.5 to 21.5
Frequency Min (GHz): 17.5
Frequency Max (GHz): 21.5
Gain (dB): 37 dB Min,
40 dB Typ
Gain Flatness (dB): ±1.5 dB Typ,
±1.75 dB Typ
Noise Figure (dB): 5 dB Typ,
8 dB Max
VSWR In/Out: 1.8:1 Typ, 2.5:1 Max
OP1dB (dBm): 36 dBm Min,
37 dBm Typ
OIP3: 43 dBm Min,
45 dBm Typ
DC Voltage: +9 to +12 VDC
DC Current Draw: 3.5 A Typ, 5 A Max
Spurious: -60 dBc Max
Gain Variation Over Temperature: ±2.5 dB Typ
Connectors: SMA Female
Size: 2.6" x 2.0" x 0.5"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -20 ºC to +75 ºC
Temperature (Non-Operating): -55 ºC to 85 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
