P2T-2G4G-75-R-SFF-PN * Active

SP2T Reflective Switch

Buy Now
P2T-2G4G-75-R-SFF-PN *
Product Feature

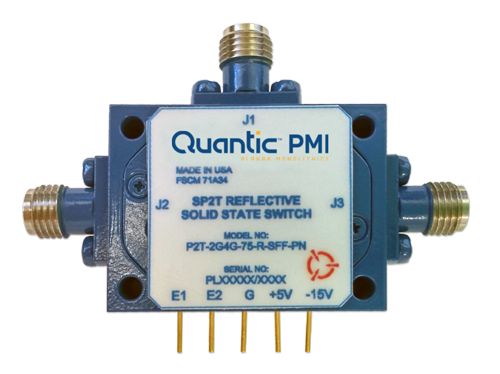

Quantic PMI Model P2T-2G4G-75-R-SFF-PN is a single pole, double throw reflective switch designed to operate over the 2 to 4 GHz frequency range that is designed to maintain low insertion loss, high isolation and fast switching speed. Housing size is 1.2" x 0.9" x 0.35" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP2T
Reflective / Absorptive: Reflective
Frequency Range (GHz): 2 to 4
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Insertion Loss (dB): 0.9 dB Typ
Insertion Loss - Typ (dB): 0.9 dB
Isolation (dB): 75 dB Min
Isolation - Typ (dB): 75 dB
Switching Speed (Typ): 100 ns
VSWR In/Out: 1.6:1 max - Measured 1.21:1
Input Power (dBm): 30 dBm Max (Operating)
Switching Speed: 100 ns Max - Measured 72.6 ns
Impedance: 50 Ohm
Control Signal: 2 Bit TTL Logic
Power Supply: +5 VDC @ 80 mA - Measured 20 mA,
-15 VDC @ 50 mA - Measured 27 mA
Control Type: Solder Pins
Connectors: SMA Female
Size: 1.2" x 0.9" x 0.35"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Storage): -55 ºC to +125 ºC
