| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Passband: | DC to 0.09 GHz |
|---|
| Cut-Off Frequency: | 0.1 GHz |
|---|
| Passband Insertion Loss: | 1 dB |
|---|
| Rejection: | -25 dBc @ 0.11 GHz,
-70 dBc @ 0.14 GHz |
|---|
| Passband VSWR: | 1.5:1 |
|---|
| Connectors In/Out: | SMA (F) |
|---|

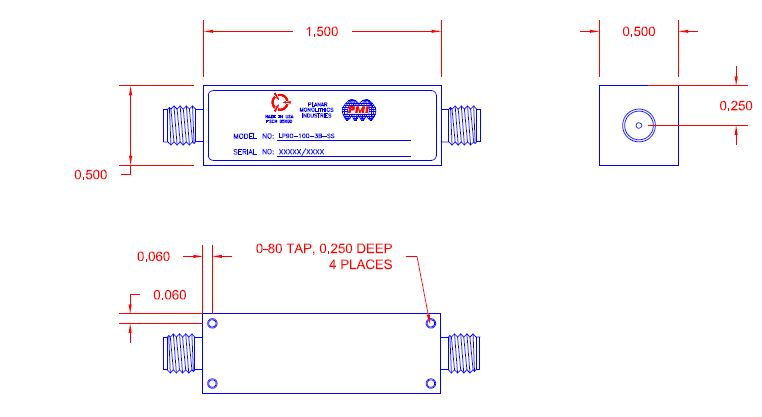

| Size: | 1.5" x 0.5" x 0.5" |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 °C to 85 °C |
|---|
| Non-Operating: | -40 °C to 100 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
