LNA-32-0D3M90M-3D0-10-12-SFF Active

LOw Noise Amplifier

Product Feature

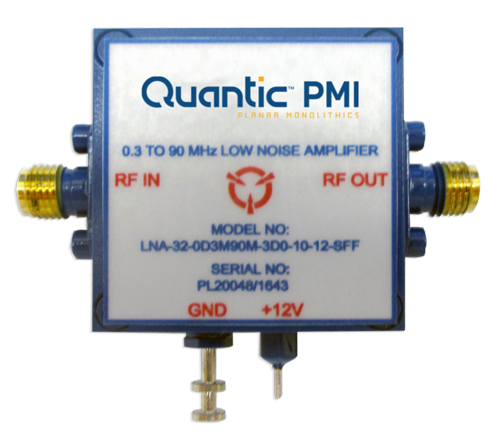

Quantic PMI Model LNA-32-0D3M90M-3D0-10-12-SFF is a low noise amplifier operating over the 0.0003 to 0.09 GHz frequency range that offers a minimum gain of 32 dB while maintaining a maximum noise figure of 3 dB. This compact model measures 1.25" x 1.25" x 0.563" and is outfitted with female SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.0003 to 0.09
Frequency Min (GHz): 0.0003
Frequency Max (GHz): 0.09
Gain (dB): 32 dB Min
Gain (Measured): 32 dB Min - Measured 36.5 dB
Noise Figure (dB): 3 dB Max
OP1dB (dBm): 10 dBm Min
DC Voltage (VDC): +12 VDC
DC Current (mA): 100 mA Typ
Input Power: 13 dBm Max
OIP3: 30 dBm Min
Connectors: SMA Female
Size: 31.75 mm x 31.75 mm x 14.30mm
1.25" x 1.25" x 0.563"
Finish: Blue Epoxy
Environmental Ratings:
Temperature: -55 ºC to +85 ºC Operating, br>-65 ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
