LM-2G18G-18-20W-1KWP-SFF-ROHS Preliminary

High Power Limiter

Product Feature

Quantic PMI Model LM-2G18G-18-20W-1KWP-SFF-ROHS is a high power limiter that operates over the 2 to 18 GHz frequency range. This model is capable of handling an input power of 20 W CW and 1 kW peak, housed within a compact 1.00" x 1.00" x 0.40" package, and outfitted with field replaceable SMA female connectors. RoHS compliant.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2 to 18 GHz
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Insertion Loss (dB): 2.6 Max (@ -10 dBm Input Power)
Input/Output VSWR: 2.01 Max (@ -10 dBm Input Power)
Input Power: +43 dBm CW Max
RF Leakage (dBm): +18 Max (Flat and Spike)
Recovery Time: 100 ns Max
P1dB Limiting Threshold (dBm): +5 Min
Connectors In/Out: SMA (F) Removable

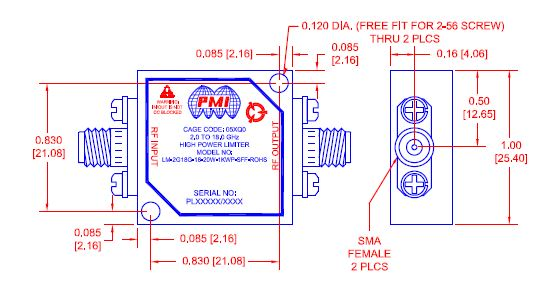

Size: 1.00" x 1.00" x 0.40" (Excluding Connectors)
Finish: Hermetically Sealed, Painted Blue,
Surface Free of Paint
Weight: 3.0 oz Max
Peak Input Power: +50 dBm 10% DC, 40 µs PW
(By Design 1 kW 0.1% DC 1 µs) Max
Limiting Threshold (P1dB): +5.0 dBm Min
Insertion Phase: Measured at an input power level of 0 dBm will be within ±1.0° relative to the phase measured at input power levels less than or equal to 0 dBm
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -65 °C to +95 °C
