LM-20M18G-100W-15DBM-TH-OPT042 Active

RF Limiter

Buy Now
Product Feature

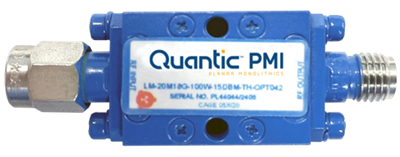

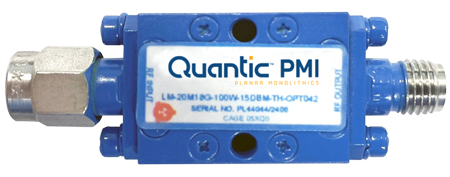

Quantic PMI Model LM-20M18G-100W-15DBM-TH-OPT042 is an RF Limiter that operates in the range of frequencies from 0.4 to 2 GHz. This limiter can handle up to 100 W CW for all temperatures (-55 to +85 °C) the energy input provides leaks of 15 dBm maximum and has a low insertion loss of 2.6 dB and a maximum 100 ns recovery.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.4 to 2
Frequency Min (GHz): 0.4
Frequency Max (GHz): 2
Insertion Loss (dB): 1.0 Max @ -10 dBm Input Power
Input/Output VSWR: 2.0:1 Max @ -10 dBm Input Power
Power Handling: 100 W CW Max, 1 KW Peak Min +85°C
(1 µs Pulse Width, 0.1% Duty Cycle)
100 W (1 µs Pulse Width, 1% Duty Cycle, 10 kHz)
100 W (10 µs Pulse Width, 0.1% Duty Cycle, 100 Hz)
100 W (1 µs Pulse Width, 1% Duty Cycle, 1 kHz)
100 W (40 µs Pulse Width, 1% Duty Cycle, 2.5 kHz)
Input Power: 100 W CW Max, 1 KW Peak Min +85 °C
(1 µs Pulse Width, 0.1% Duty Cycle)
Leakage Power: 15 dBm Max @ 100 CW
RF Leakage (dBm): 15 Max @ 100 CW
Recovery Time: 100 ns Max @ 100 W Peak Power
Limiting Threshold (dBm): 5 dBm Min
P1dB Limiting Threshold (dBm): 5 Min
Connectors In/Out: Input: SMA Male
Output: SMA Female
Size: 15.88 mm x 20.32 mm x 10.16 mm
0.625" x 0.80" x 0.40"
Excluding Connectors
Finish: Painted Blue
Weight: 20 g [0.705 oz] Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Vibration: 0.1 inchpp OR ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: MIL-STD-202, METHOD 213B COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
