LM-20M18G-100W-15DBM-SFM-PM Preliminary

Coaxial Limiter

Product Feature
Additional Documents

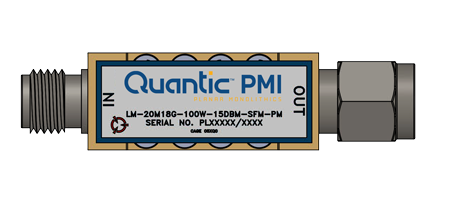

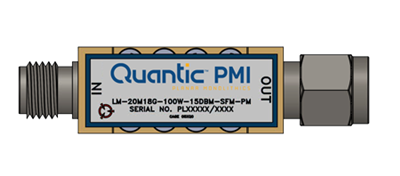

Quantic PMI Model LM-20M18G-100W-15DBM-SFM-PM is a Coaxial Limiter with an operating range of 0.02 to 18 GHz with a maximum insertion loss of 1 dB and a VSWR of 1.5:1 maximum. This compact unit measures 0.90" x 0.38" sq and is outfitted with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.02 to 18
Frequency Min (GHz): 0.02
Frequency Max (GHz): 18
Insertion Loss (dB): 2.6 Max @ -10 dBm
Input/Output VSWR: 1.5:1 Max
Power Handling: 100 W CW Max @ -55 to +85 °C, 1 KW Peak Min +85°C
(1 µs Pulse Width, 0.1% Duty Cycle)
Input Power: 100 W CW Max @ -55 to +85 °C, 1 KW Peak Min +85°C
(1 µs Pulse Width, 0.1% Duty Cycle)
Leakage Power: 15 dBm Max @ 100 W CW
RF Leakage (dBm): 15 Max @ 100 W CW
Recovery Time: 100 ns Max @ 100 W Peak Power
Phase Matching: ±4º Goal
±5º Max per set
P1dB Limiting Threshold (dBm): 5 Min
Connectors In/Out: Input: SMA M
Output: SMA Female
Size: 0.90" x 0.38" x 0.38" Max
[22.9 mm x 9.7 mm x 9. 7mm]
Excluding Connectors
Finish: Gold Plated
Weight: 20 g [0.705 oz] Max
Limiting Threshold (P1dB): +5 dBm Min
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62°C to +95°C
Humidity: 100%
Vibration: 0.1 inchpp OR ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: 15g, 11 ± 1 ms
Altitude: 70, 000 FT
