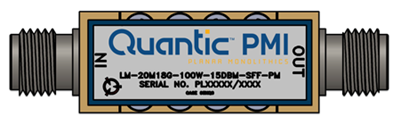

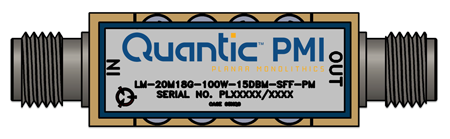

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.02 to 18 |
|---|
| Frequency Min (GHz): | 0.02 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2.6 dB Max @ -10 dBm |
|---|
| Input/Output VSWR: | 1.5:1 Max |
|---|
| Power Handling: | 100 W CW Max @ -55 to +85 °C, 1 KW Peak Min +85 °C
(1 µs Pulse Width, 0.1% Duty Cycle) |
|---|
| Input Power: | 100 W CW Max @ -55 to +85 °C, 1 KW Peak Min +85 °C
(1 µs Pulse Width, 0.1% Duty Cycle) |
|---|
| Leakage Power: | 15 dBm Max @ 100 W CW |
|---|
| RF Leakage (dBm): | 15 Max @ 100 W CW |
|---|
| Recovery Time: | 100 ns Max @ 100 W Peak Power |
|---|
| Phase Matching: | ±4º Goal
±5º Max per set |
|---|
| P1dB Limiting Threshold (dBm): | 5 Min |
|---|
| Connectors In/Out: | SMA Female |
|---|
| Size: | 0.90" x 0.38" x 0.38" Max
[22.9 mm x 9.7 mm x 9. 7mm]
Excluding Connectors |
|---|
| Finish: | Gold Plated |
|---|
| Weight: | 20 g [0.705 oz] Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -62 °C to +95°C |
|---|
| Humidity: | 100% |
|---|
| Vibration: | 0.1 inchpp or ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV) |
|---|
| Shock: | 15g, 11 ± 1 ms |
|---|
| Altitude: | 70, 000 FT |
|---|
