LM-1G18G-16-4W-SMF-ROHS-SFF Preliminary

Limiter

LM-1G18G-16-4W-SMF-ROHS-SFF
Product Feature

Quantic PMI Model LM-1G18G-16-4W-SMF-ROHS-SFF is a coaxial limiter with an operating range of 1.0 to 18.0 GHz. This model has a maximum insertion loss of 2.3 dB at -10 dBm input power, with a maximum VSWR of 2.0:1. This compact unit measures 0.90" x 0.38" x 0.38", and is outfitted with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Insertion Loss (dB): 2.3 dB
Input/Output VSWR: 2.0:1 Max
Power Handling: 4 W CW
Maximum Input Power: 100 W Peak (1 us Pulse Width, 2% Duty Cycle)
Input Power: 4 W CW, 100W Peak (1 us Pulse Width, 0.1% Duty Cycle)
Spike Leakage: 0.1 erg
RF Leakage (dBm): 20 Max
Recovery Time: 250 ns Max @ 1000 Peak Power
P1dB Limiting Threshold (dBm): +5 Min (1 dB Compression)
Connectors In/Out: SMA (F)

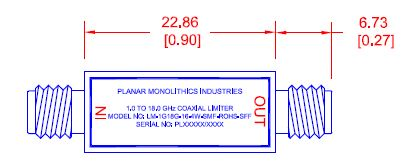

Size: 1, 54" x 0.38" x 0.38"
39.14mm x 9.65mm x 9.65mm
Finish: Painted Blue
Weight: 20 g [0.705 oz]
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -62 ºC to +95 ºC
Humidity: 100%
Vibration: 0.1 inchpp or ±10G, 5 ~ 500 Hz
Shock: 15G, 11±1 ms
Altitude: 70, 000 FT
