LM-1D2G1D4G-4KW-20DBM-SFM Active

Limiter

Product Feature

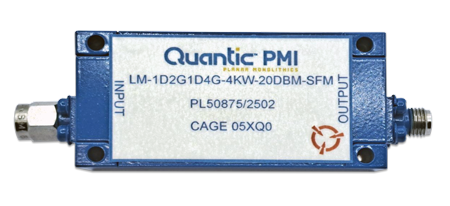

Quantic PMI Model LM-1D2G1D4G-4KW-20DBM-SFM is a limiter with an operating range of 1.2 to 1.4 GHz. This model has a maximum insertion loss of 0.6 dB, and minimum return loss of 19.5 dB. This unit measures 2.31" x 1.10" x 0.80" and is outfitted with SMA (M/F) connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1.2 to 1.4
Frequency Min (GHz): 1.2
Frequency Max (GHz): 1.4
Insertion Loss (dB): 0.5 Max (-40 to +55 °C),
0.6 Max (+55 to +70 °C)
Power Handling: Normal Operating Condition: 10 W Peak Max
(1 ms Pulse Width, 36% Du1y Cycle)
Overload Survival Condition: 4 kW Peak Max
(40 µs Pulse Width, 1% Du1y Cycle)
Input Power: 10 W Peak Max (1 ms Pulse Width, 36% Duty Cycle)
Spike Leakage: 23 dBm Max
RF Leakage (dBm): 20 Max
Recovery Time: 15 µs Max (To 0.1 dB under normal operating conditions)
Connectors In/Out: Input: SMA Male
Output: SMA Female
Size: 2.31" x 1.10" x 0.80"
Finish: Painted Blue
Return Loss: 19.5 dB Min (-40 to +55 °C)
16 dB Min (+55 to +70 °C)
Input Rise Time: 100 ns Min
Environmental Ratings:
Operating Temperature: -40 °C to +70 °C
Non-Operating Temperature: -40 °C to +85 °C
Vibration: MIL-STD-810F METHOD 514.5, CATEGORY 2
3 AXES, 1 HR PER AXIS
Shock: 50 g, 11 ms PULSE, 1/2 SINE WAVE
1 AXIS, 3 PULSES
Relative Humidity: 95%
Altitude: 10, 000 FT
