LM-118-100W-22DBM Active

RF Limiter

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LM_118_100W_22DBM_ISO_Outline_32811295_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/Screenshot_2024_04_19_102901_78881390_400.png
Product Feature
Additional Documents

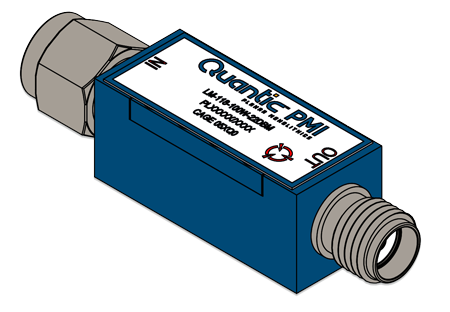

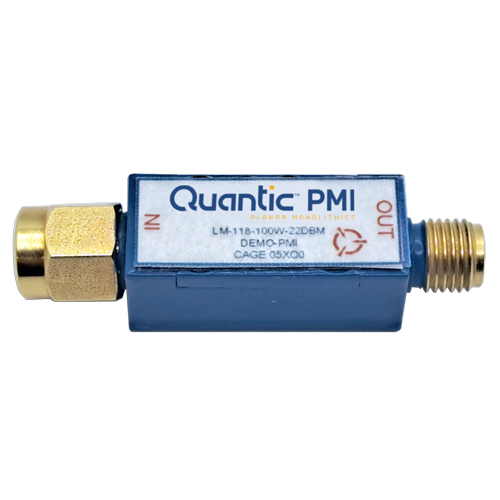

Quantic PMI Model LM-118-100W-22DBM is an RF Limiter that operates in the range of frequencies from 1 to 18 GHz that can handle up to 100 W CW over temperature (-55 to +85 °C). The leakage power IS +22 dBm maximum; a low insertion loss of 2.60 dB and a maximum 100 ns recovery time. Package size is 0.90" x 0.38" x 0.38" with SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency: 1 to 18 GHz
Frequency Min: 1 GHz
Frequency Max: 18 GHz
Insertion Loss: 2.60 dB Max @ -10 dBm input power
Input/Output VSWR: 2.0:1 Max @ -10 dBm input power
Power Handling: 100 W CW Max @ -55 to +85 °C
1 kW Peak Min +85 °C (1 µs PW, 0.1% Duty Cycle)
100 W (1 µs, 1% Duty Cycle, 10 kHz)
100 W (10 µs, 0.1% Duty Cycle, 100 Hz)
100 W (1 µs, 0.1% Duty Cycle, 1 kHz)
100 W (40 µs, 10% Duty Cycle 2.5 kHz)
Input Power: 100 W CW Max @ -55 to +85 °C
Leakage Power: +22 dBm Max @ 100 W CW
Recovery Time: 100 ns Max @ 100 W Peak Power
Connectors In/Out: Input: SMA Male
Output: SMA Female

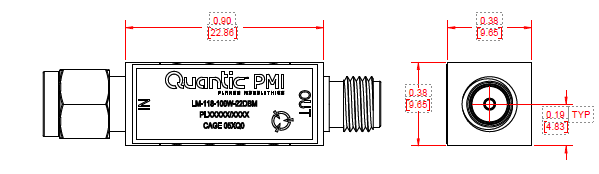

Size: 0.90" x 0.38" x 0.38"
Excluding Connectors
Finish: Painted Blue
Weight: 20 g [0.705 oz] Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
