| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.01 to 40 |
|---|
| Frequency Min (GHz): | 0.01 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Insertion Loss (dB): | 1 to 3.2 dB |
|---|
| Input/Output VSWR: | 2.0:1 |
|---|
| Power Handling: | 5 Watts CW Max |
|---|
| Input Power: | 4 - 25 Watts |
|---|
| RF Leakage (dBm): | 0.02 to 1 GHz = +22 Max.
1 to 4 GHz = +20 Max
4 to 8 GHz = +18 Max
8 to 12 GHz = +15 Max
12 to 18 GHz = +13 Max
20 to 28 GHz = +13 Max
28 to 32 GHz = +12 Max
32 to 40 GHz = +12 Max |
|---|
| Recovery Time: | 100 ns Max |
|---|
| P1dB Limiting Threshold (dBm): | +7 Min |
|---|
| Connectors In/Out: | 2.92mm Female - Removable |
|---|

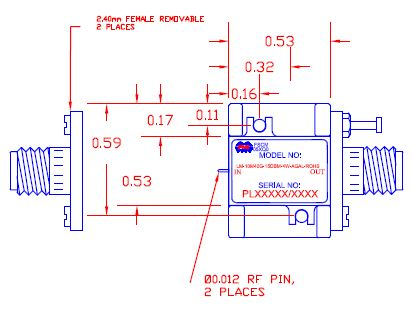

| Size: | 0.53” X 0.7” X 0.26” |
|---|
| Finish: | Gold Plated |
|---|
| Peak Input Power: | 25 Watts Peak Max (20 MHz to 12 GHz)
20 Watts Peak Max. (18 GHz)
(1 µs Pw, 1% Duty Cycle) |
|---|
| Insertion Loss @ -10 dBm Input Power: | 10 MHz to 8 GHz = 1.00 dB Max
8 to 18 GHz = 1.50 dB Max
18 to 40 GHz = 3.20 dB Max |
|---|
| VSWR @ -10 dBm Input Power: | 2.0:1 Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107A Cond A |
|---|
