LM-10M18G-16-20W-RAD-OPT418 Active

Coaxial Limiter

Product Feature

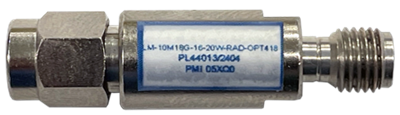

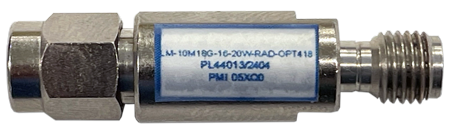

Quantic PMI Model LM-10M18G-16-20W-RAD-OPT418 is a coaxial limiter with an operating range of 4 to 18 GHz. Unit size is 1.314" x 0.376" (Dia) with 2.92mm connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 4 to 18
Frequency Min (GHz): 4
Frequency Max (GHz): 18
Insertion Loss (dB): 2.0 @ -10 dBm Input Power
Input/Output VSWR: 2.0:1 Max @ -10 dBm Input Power
Input Power: 20 W CW Max
500 W Peak Max - 1 µs PW / 1 kHz PRF
Leakage Power: 15 dBm Typ
RF Leakage (dBm): 15 dBm Typ
Recovery Time: 250 ns Max
Limiting Threshold (dBm): 5 dBm Nom (1 dB Compression)
P1dB Limiting Threshold (dBm): 5 Nom (1 dB Compression)
Impedance: 50 Ohm
Connectors In/Out: Input: 2.92mm Male
Output: 2.92mm Female
Size: 1.314" x 0.376" (Dia)
Finish: Nickle Plated
Weight: 20 g (0.705 oz] Max
RF Power Handling: 20 W CW Max
500 W Peak Max - 1 µs PW / 1 kHz PRF
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
Humidity: 100%
Vibration: 0.1 inchpp OR ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: 20G, 11±1 ms
Altitude: 70, 000 FT
