| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.5 to 2 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 2 |
|---|
| Insertion Loss (dB): | 0.7 @ -10 dBm Input Power |
|---|
| Input/Output VSWR: | 1.35:1 dB Max @ -10 dBm Input Power |
|---|
| Input Power: | 20 W CW Max
500 W Peal Max - 1 µs PW / 1 kHz PRF |
|---|
| Leakage Power: | 15 dBm Typ |
|---|
| RF Leakage (dBm): | 15 dBm Typ |
|---|
| Recovery Time (3 dB): | 250 ns Max |
|---|
| Limiting Threshold (dBm): | +5 dBm Nom (1 dB Compression) |
|---|
| P1dB Limiting Threshold (dBm): | +5 Nom (1 dB Compression) |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors In/Out: | Input: 2.92mm Male
Output: 2.92mm Female |
|---|

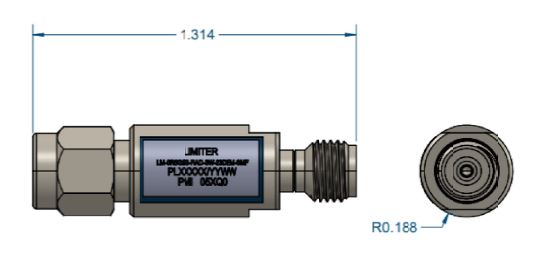

| Size: | 1.314" x 0.376" (DIA) |
|---|
| Finish: | Nickel Plated |
|---|
| Weight: | 20 g (0.705 oz] Max |
|---|
| RF Power Handling: | 20 W CW Max
500 W Peal Max - 1 µs PW / 1 kHz PRF |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -62 °C to +95 °C |
|---|
| Humidity: | 100% |
|---|
| Vibration: | 0.1 inchpp OR ± 10G, 5 ~ 500 Hz
(FIGURE 2, SHEET 1 OF 3, CURVE IV) |
|---|
| Shock: | 20G, 11±1 ms |
|---|
| Altitude: | 70, 000 FT |
|---|
