LM-10M18G-16-20W-AL-OPT418-SMM Preliminary

Coaxial Limiter

Additional Documents

Quantic PMI Model LM-10M18G-16-20W-AL-OPT418-SMM is a coaxial limiter with an operating range of 4.0 to 18.0 GHz. This model has a maximum insertion loss of 2.5 dB at -10 dBm input power with a VSWR of 2.0:1 Max. This compact unit measures 0.90" x 0.38" square and has SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 4 to 18 GHz
Frequency Min (GHz): 4
Frequency Max (GHz): 18
Insertion Loss (dB): 2.0 @ -10 dBm Input Power
Input/Output VSWR: 2:0:1 Max @ -10 dBm Input Power
Input Power: 20 W CW Max
500 W Peak Max - 1 µs PW / 1 kHz PRF
Leakage Power: +15 dBm Typ
RF Leakage (dBm): +15 Typ
Recovery Time: 250 ns Max @ 1000 W Peak Power
Limiting Threshold (dBm): +5 dBm Nom (1 dB Compression)
P1dB Limiting Threshold (dBm): +5 Nom (1 dB Compression)
Impedance: 50 Ohm
Connectors In/Out: RF IN: SMA Male
RF OUT: SMA Male

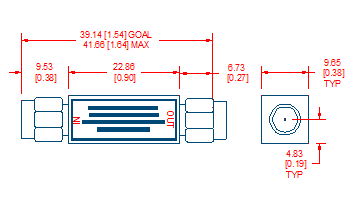

Size: 22.86 mm x 9.65 mm x 9.65 mm
0.90" x 0.38" sq
excuding connectors
Finish: Painted Blue
Weight: 20 g Max
RF Power Handling: 20 W CW Max
500 W Peak Max - 1 µs PW / 1 kHz PRF
VSWR @ -10 dBm Input Power: 2.0:1 Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
Humidity: 100%
Shock: 20G, 11±1 ms
Altitude: 70, 000 FT
