LM-0R1G4G-100W-15DBM-SFF-ROHS
Preliminary
Limiter
Quantic PMI Model LM-0R1G4G-100W-15DBM-SFF-ROHS is a high-power limiter that operates over the 0.1 to 4.0 GHz frequency range. This Model can handle an input power of 100 watts CW.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.1 to 4 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 4 |
|---|
| Insertion Loss (dB): | 1.5 dB Max |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| Input Power: | +50 dBm CW (100 W) Max
+60 dBm Peak (1 kW) 1% DC, 1 µs PW |
|---|
| RF Leakage (dBm): | +15 Max (Flat) |
|---|
| Recovery Time: | 100 ns Max |
|---|
| Connectors In/Out: | SMA Female |
|---|

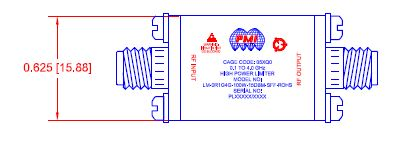

| Size: | 15.88mm x 20.32mm x 10.16mm (Excluding Connectors)
0.625" x 0.80" x 0.40" (Excluding Connectors) |
|---|
| Finish: | Hermetically sealed, painted blue. Mounting surface free of paint |
|---|
| Weight: | 2.0 oz Max |
|---|
| Insertion Loss @ -10 dBm Input Power: | 2.0:1 Max (Input/Output) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55°C to +85°CC |
|---|
| Non-Operating Temperature: | -57 °C to +85 °CC |
|---|
| Humidity: | 100% RH (WITH CONDENSATION) |
|---|
| Altitude: | 43, 000 FT |
|---|
