LM-0118-10-1W-SHS-2-FM-ROHS Active

High-Power Limiter

Buy Now
Product Feature

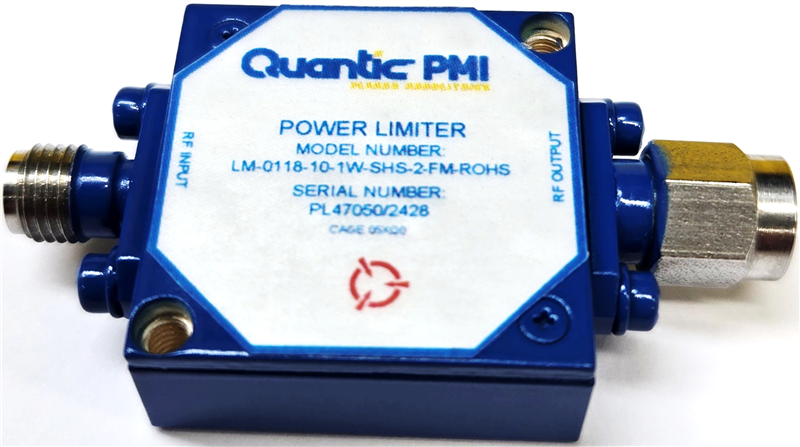

Quantic PMI model number LM-0118-10-1W-SHS-2-FM-ROHS is a high-power limiter that operates from 100 MHz to 18 GHz that handles 100 W peak power with a pulse width of 1 µs.  This limiter has an insertion loss of 2 dB, a VSWR of 2.0:1, and an input power of 5 W CW.  Contains SMA female and male connectors, and the size is 1.00" x 1.00" x 0.40".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.1 to 18 GHz
Frequency Min (GHz): 0.1
Frequency Max (GHz): 18
Insertion Loss (dB): 1.8 Max
1.5 Typ
(@ -20 dBm)
Input/Output VSWR: 2:1 Max
1.5:1 Typ
(@ -20 dBm)
Peak Power: 100 W
Average Power: 5 W CW
Input Power: 5 W CW
RF Leakage (dBm): +15 Max, +10 Typ
Pulse width: 1 µs
Duty Cycle: 0.1%
Connectors In/Out: SMA (F/M)
Size: 1.00" x 1.00" x 0.40"
Finish: Painted Blue
Weight: 1.5 oz. Max
Leakage: +15 dBm Max
+10 dBm Typ
(@ 1 W)
Environmental Ratings:
Operating Temperature: -54 °C to +85 °C
Non-Operating Temperature: -65 °C to +100 °C
Humidity: MIL-STD-202F, METHOD 103B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Altitude: MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107D COND. A
