GMLA-0520-10 Preliminary

Amplifier

Quantic PMI Model GMLA-0520-10 is a 0.05 to 0.2 GHz amplifier offering 11 to 13 dB gain with a low noise figure of 5 dB. This amplifier is supplied in a housing measuring 1.5" x 0.862" x 0.32" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.05 to 0.2
Frequency Min (GHz): 0.05
Frequency Max (GHz): 0.2
Gain (dB): 11 to 13.5 dB
Noise Figure (dB): 5 dB Max @ +25 °C
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 V ± 1%
Impedance: 50 Ohm
Input Power: 13 dBm Min
Connectors: SMA Female

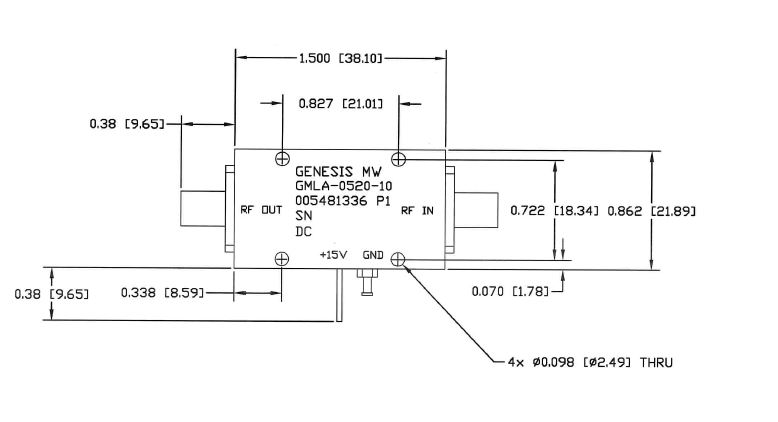

Size: 1.5" x 0.862" x 0.32"
Weight: 45 g Max
