| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Passband: | DC to 16 GHz |
|---|
| Cut-Off Frequency: | 18.1 GHz |
|---|
| Passband Insertion Loss: | 1 dB Max |
|---|
| Rejection: | -30 dB @ 19 GHz,
-60 dB from 20 to 28 GHz |

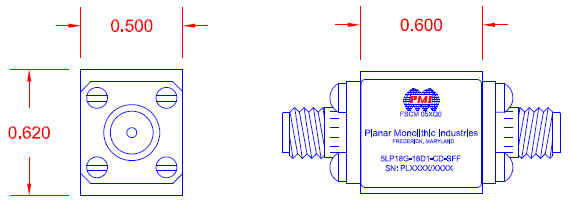

|---|
| Passband VSWR: | 1.5:1 Max |
|---|
| Connectors In/Out: | 2.92mm (F) |
|---|
| Size: | 2.1" x 0.785" x 0.5" |
|---|
| Weight: | 1 oz Typ |
|---|
| Finish: | Painted Blue |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 °C to 85 °C |
|---|
| Non-Operating: | -65 °C to 125 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
