PXS-1G18G-65-T-SFF * Active

High Speed Two Pole Transfer Switch

Buy Now
PXS-1G18G-65-T-SFF *
Product Feature

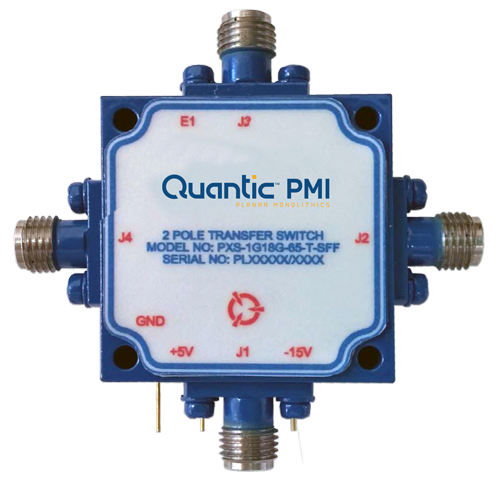

Quantic PMI Model PXS-1G18G-65-T-SFF is an absorptive, high speed, two pole, transfer switch capable of switching within 100 ns maximum that has a frequency range of 1 to 18 GHz with 65 dB isolation. Housing size is 1.2" x 1.2" x 0.5" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: XFER / DPDT
Reflective / Absorptive: Absorptive
Frequency (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Insertion Loss (dB): 3.1 dB Max
Insertion Loss - Typ (dB): 3.1 dB Max
Isolation (dB): 65 dB Min
Isolation - Typ (dB): 65 dB Min - Measured 70.2 dB
Switching Speed: 100 ns Max
Switching Speed - Typ: 100 ns
Input Power: 27 dBm (0.5 W) Max
VSWR In/Out: 2.0:1 Max - Measured 1.78:1
Impedance: 50 Ohm
Power Supply: +5 ± 0.5 VDC
-15 ± 3 VDC
Control Signal: Solder Pin, TTL Logic
Connectors: SMA Female
Size: 1.2" x 1.2" x 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
