Two Pole - Two Throw Switches (XFER / DPDT)

Quantic PMI offers a variety of Two Pole - Two Throw Switches (XFER / DPDT) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusReflective / AbsorptiveFrequency Min (GHz)Frequency Max (GHz)Insertion Loss (dB)Isolation (dB)Switching Speed

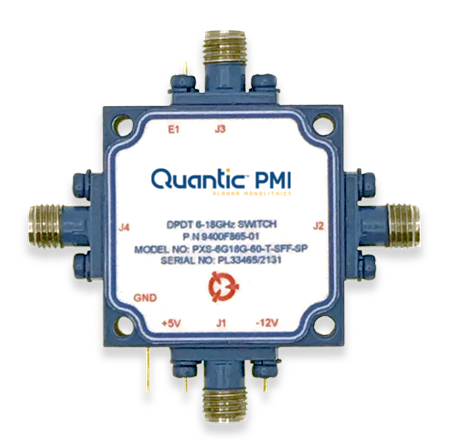

PXS-6G18G-60-T-SFF-SP
Active		ActiveAbsorptive6183.5 dB Max60 dB Min70 ns Max (50% TTL to 10%/90% RF)
PXS-100M18G-65-T-SFF
Active		ActiveAbsorptive0.1183.1 dB Max65 dB Min100 ns Max
PXS-2G18G-60-SFF
Preliminary		PreliminaryAbsorptive2183 dB Max60 dB Min100 ns Max
PXS-400M10G-60-SFF
Preliminary		PreliminaryReflective0.4103.25 dB Max55 dB Min30 ns Max
PXS-400M500M-60-SFF
Preliminary		PreliminaryReflective0.40.52 dB Typ60 dB Min30 ns Max
PXS-9G10G-60-SFF
Preliminary		PreliminaryReflective9102.75 dB Max55 dB Min30 ns Max
SWN-2181-TRA-OPT0723
Preliminary		PreliminaryAbsorptive0.72.31.65 dB80 dB15 ns Max (Rise/Fall Time)
50 ns Typ, 100 ns Max (Delay On/Off)
PXS-500M18G-60-SFF
Active		ActiveAbsorptive0.5183 dB Max60 dB Min100 ns Max
SWN-2181-TRA-T
Active		ActiveAbsorptive7185 dB Max60 dB Min500 ns Max
PXS-12G18G-65-T-SFF *
Active		ActiveAbsorptive12183 dB Max65 dB Min100 ns Max
PXS-8G12G-70-T-SFF *
Active		ActiveAbsorptive8122.2 dB Max70 dB Min100 ns Max
PXS-4G8G-75-T-SFF *
Active		ActiveAbsorptive481.9 dB Max75 dB Min100 ns Max
PXS-2G4G-75-T-SFF *
Active		ActiveAbsorptive241.2 dB Max75 dB Min100 ns Max
PXS-1G18G-65-T-SFF *
Active		ActiveAbsorptive1183.1 dB Max65 dB Min100 ns Max
PXS-10M1G-80-T-SFF *
Active		ActiveAbsorptive0.0111.3 dB Max80 dB Min200 ns Typ,
250 ns Max
PXS-1G2G-80-T-SFF *
Active		ActiveAbsorptive121 dB Max80 dB Min100 ns Max
SWN-2181-TRA
Active		ActiveAbsorptive0.5183.5 dB60 dB15 ns Max (Rise/Fall Time) 50 ns Typ, 100 ns Max (Delay On/Off)
