PEC-26-1G2G-3R0-25-15-SFF Active

High Linearity, Low Noise Amplifier

Buy Now
PEC-26-1G2G-3R0-25-15-SFF
Product Feature

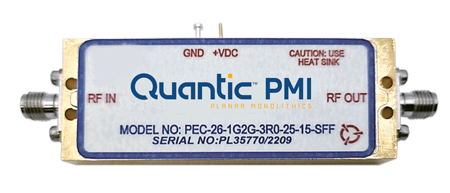

Quantic PMI Model PEC-26-1G2G-3R0-25-15-SFF is a High Linearity, Low Noise Amplifier that operates in the 1 to 2 GHz frequency range. This model offers a typical gain of 26 dB: a maximum gain flatness of ±1 dB; a maximum noise figure of 3 dB; 45 dBm output IP3 and a maximum VSWR of 2.0:1. The package size is 2.5" x 1.0" x 0.33" and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 2
Frequency Min (GHz): 1
Frequency Max (GHz): 2
Gain (dB): 26 dB
Gain Flatness (±dB): ±1 dB
Noise Figure (dB): 3 dB
OP1dB (dBm): 25 dBm
OIP2 (dBm): 55 dBm
OIP3 (dBm): 45 dBm
VSWR: 2.0:1
DC Voltage Supply (VDC): +12 to +15 VDC
DC Current (mA): 400 mA
Connectors: SMA Female
Size: 2.5" x 1.0" x 0.33"
Export Classification (ECCN): EAR99
Environmental Ratings::
Temperature (Operating): -30 °C to +85 °C
Temperature (Non-Operating): -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 213B COND. B
Temperature Cycle: MIL-STD-202, METHOD 105C COND. B
