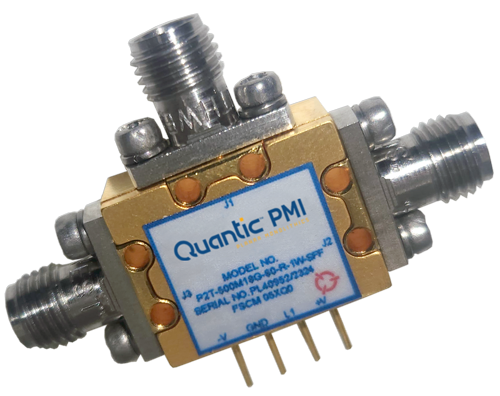

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP2T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency Range (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2.5 dB Max |
|---|
| Insertion Loss - Typ (dB): | 2.5 dB Max |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| Input Power (dBm): | 1 W CW,
2 W Peak, 1% DC, 100 ns Max (2 to 18 GHz) |
|---|
| Switching Speed: | 25 ns Max |
|---|
| Logic: | +5 VDC TTL (See Truth Table) |
|---|
| Operating Power: | up to 23 dBm CW Min |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female - Field Replaceable |
|---|
| Size: | 0.65" x 0.53" x 0.32" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to +85 °C |
|---|
| Temperature (Storage): | -55 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. B |
|---|
