P2T-2G4G-80-55-R-SFF Active

SP2T Reflective Switch

Buy Now
P2T-2G4G-80-55-R-SFF
Product Feature

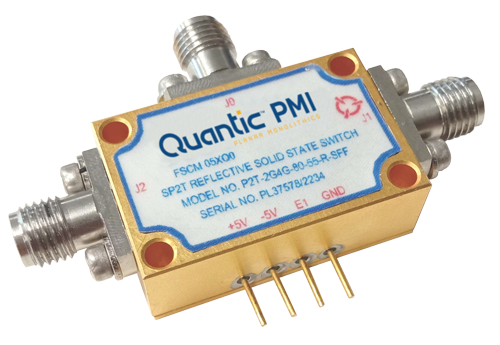

Quantic PMI Model P2T-2G4G-80-55-R-SFF is a single pole, double throw reflective switch designed to operate over the 2 to 4 GHz frequency range with an input power of 30 dBm and is designed to maintain low insertion loss of 1.3 dB maximum, high isolation of 80 dB minimum, and a 50 ns minimum switching speed.  The models housing measures 1.1" x 0.7" x 0.4" and has removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Configuration: SP2T
Reflective / Absorptive: Reflective
Frequency Range (GHz): 2 to 4
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Insertion Loss (dB): 1.3 dB Max
Insertion Loss - Typ (dB): 1.3 dB
Isolation (dB): 80 dB Min
Input Power (dBm): 30 dBm Max (Operating)
Impedance: 50 Ohm
Switching Speed: 50 ns Min
DC Voltage & Current: +5 VDC @ 100 mA Max
-5 VDC @ 50 mA Max
Control: TTL Compatible - See Logic Table
Power & Control Connector: Solder Pins
Connectors: SMA Female - removable
Size: 1.10" x 0.70" x 0.40"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -45 °C to + 85 °C
Temperature (Storage): -55 °C to + 125 °C
Humidity: 100% RH at 35 Deg. C, 95% RH at 40 Deg. C
Shock: 20G for 11 ms
Vibration: 25g rms (15° 2 kHz)
