EQL-DC20-10-SFF Active

Passive Equalizer

Buy Now

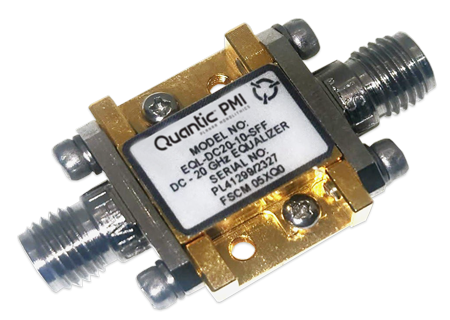

Quantic PMI Model QL-DC20-10-SFF is a DC to 20 GHz passive equalizer with a nominal slope of 9 dB, 10 dB typical loss at DC with an insertion loss of 1 dB typical at 20 GHz.  The equalizer design allows both forward and reverse measurements to be equivalent.  This model has SMA female connectors and a size of 0.53" x 0.70" x 0.26".  Dual use connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range: DC to 20 GHz
Frequency Min: DC
Frequency Max: 20 GHz
VSWR: 1.8:1 Typ
2.0:1 Max
Insertion Loss: 10.0 dB @ DC Typ
0.75 dB @ 20 GHz Typ
Connectors In / Out: SMA Female
Size: 0.56" x 0.53" x 0.26"
Finish: Gold Plated
Weight: 1.0 oz Max
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
