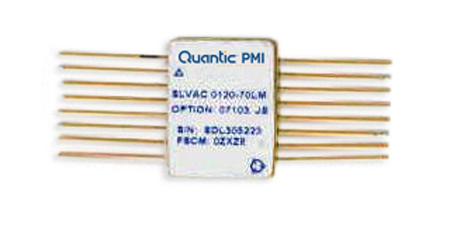

Successive Detection Log Video Amplifier - Surface Mount

Successive Detection Log Video Amplifier operates over the 0.1 to 2.0 GHz range. This unit has a dynamic range of 65 to 70 dB a TSS of -67 dBm and a nominal video bandwidth of 20 MHz.  This unit is designed using innovative GaAs technology which provides stunning performance and reliability in a compact package making it an optimum solution for high-speed channelized receiver applications. This unit offers typical fast rise time

Additional Product Information under,

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.1 to 2.0 GHz
Frequency Min: 0.1 GHz
Frequency Max: 2 GHz
Logging Range: -65 to +5 dBm
Video Load: 100 Ohms
Log Slope: 25 mV/dB
Min., TSS: -70 dBm
Limited IF Output: -14 dBm
Voltage &, Current: 50 mA @ +12 V,
190 mA @ -12 V
Dynamic Range: 65 dB
Tangenital Sensitivity: -65 dBm Min (-70 dBm TYP)
Log Linearity: +/-1.2 dB Max (-60 dBm to 0 dBm), +/-0.8 dB Typ,
+/-1.5 dB Max (-65 dBm TO +5 dBm) +/-1.2 dB Typ
Log Voltage: -60 dBm (-65 dBm Typ)
Maximum Log Voltage: +5 dBm (+8 dBm Typ)
Maximum RF Input Power: +10 dBm
Input VSWR: 1.8:1 (1.5:1 TYP)
Output Voltage: 2.7 V
Rise Time: 25 ns
Fall Time: 30 ns
Log Video Output Settling Time: 40 ns
Log Video Output DC Offset: 0.1V Nom
Log Video Output Slope: 25 mV/dB
Propagation Delay: 10 ns
DC Power Plus: +7 V to +18 V @ 50 mA (No Video Load)
DC Power Minus: -7 V to -18 V @ 190 mA
Size: 0.75" x 0.75" x 0.135"
Environmental Ratings:
Temperature: -55 °C to 85 °C
Non-Operating: -65 °C to 100 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
