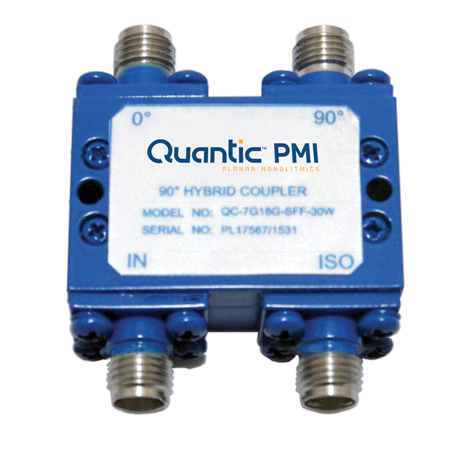

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 7 to 18 GHz |
|---|
| Frequency Min (GHz): | 7 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Amplitude Balance (dB): | ±0.5 |
|---|
| Phase Balance (°): | ±5° |
|---|
| Insertion Loss (dB): | <1.3 dB - Measured 0.83 dB |
|---|
| Isolation (dB): | 18 min |
|---|
| RF Input Power Handling: | Average: 30 Watts,
Peak: 1 KW |
|---|
| VSWR: | 1.40:1 - Measured 1.36:1 |
|---|
| Nominal Split: | 3.01 dB |
|---|
| Impedance: | 50 Ohms |
|---|
| Connectors (In/Out): | SMA (F) |
|---|
| Size: | 0.79" x 1.22" x 0.43" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
