PVAN-8993-60-SFF Active

Voltage Variable Attenuator

PVAN-8993-60-SFF
Product Feature

Quantic PMI Model PVAN-8993-60-SFF is an analog controlled 60 dB pin diode attenuator operating over the frequency range of 8.9 to 9.3 GHz that provides 60 dB attenuation with a flatness of ±0.75 dB and an accuracy of ±2 dB Max (0 to +55 °C).  Package size is 2.0" x 1.8" x 0.50" with a 15 Pin Micro-D Female connector for power / control and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8.9 to 9.3
Frequency Min (GHz): 8.9
Frequency Max (GHz): 9.3
Insertion Loss (dB): 2.7 dB Max
Attenuation (dB): 60 dB Min
Control Type: Voltage
Attenuation Flatness (dB): ±0.75 dB Max
Attenuation Accuracy (dB): ±2 dB Max (0 to +55 °C)
±1.5 dB Max (+5 to +45 °C)
Switching Time: 500 ns Max
VSWR: 2.0:1 Max
Power Supply: +15 ± 0.5 VDC @ 120 mA Max
-15 ± 0.5 VDC @ 50 mA Max
Transfer Function: 10 dB/V Nom
RF Connectors: SMA Female - removable
POWER/CONTROL CONNECTOR: 15 Pin Micro-D Female (Mating Connector Supplied)

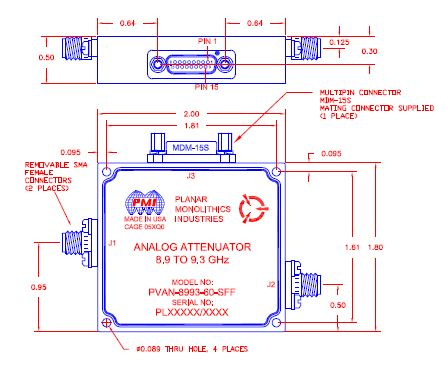

Size: 2.0" x 1.8" x 0.50"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -0 °C to + 55 °C
Non-Operating Temperature: -40 °C to + 60 °C
Humidity: 95% AT +40 °C
