PTP-2G18G-6G10G14G-CD-S4F
Preliminary
PTP-2G18G-6G10G14G-CD-S4F

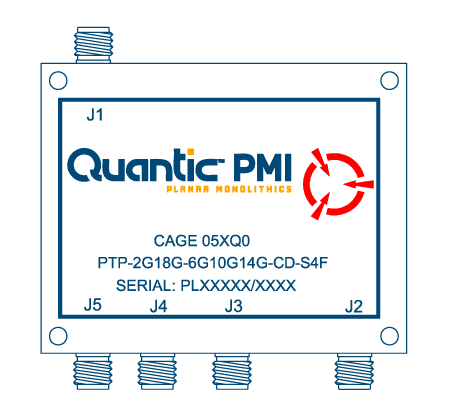

PMI Model No. PTP-2G18G-6G10G14G-CD-S4F is a multiplexer that operates over the frequency range of 2.0 to 18.0 GHz.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequencies Fo (GHz): | 10.0 GHz |
|---|
| Insertion Loss: | 1.5 dB Max. |
|---|
| Frequency: | 2.0 to 18.0 GHz |
|---|
| Crossover: | ±5% of Crossover |
|---|
| VSWR: | 2.0:1 Max. |
|---|
| Connectors: | SMA (F) |
|---|

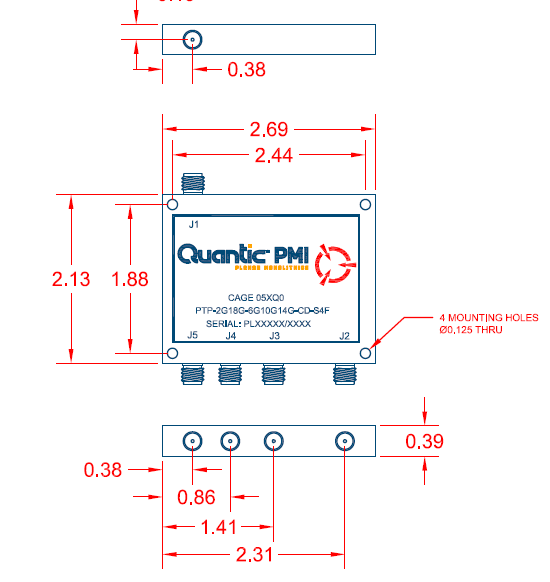

| Size: | 2.7" x 2.1" x 0.4" |
|---|
| Crossover Frequency: | 6.0/10.0/14.0 GHz |
|---|
| Rejection: | 60 dB Min. @ DC to 1.7 GHz
60 dB Min. above 21.0 GHz |
|---|
| Rejection @ ±15% of Crossover: | 60 dB Min. |
|---|
| Passband Ripple: | 0.5 dB Max. P-P |
|---|
| Impedance: | 50 Ohms |
|---|
| Power Handling: | 2 W CW Min. |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating: | -65 ºC to +125 ºC |
|---|
