PS-90-6012-PH5-HS50NS-15V Active

Product Feature

PMI Model No. PS-90-6012-PH5-HS50NS-15V is a high speed 6.0 to 12.0 GHz frequency range, 0 to 180 degree, miniature, bi-phase modulator/phase shifter with TTL control logic (ECL logic is available). The units are all phase matched within ±5° of each other.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 6.0 to 12.0 GHz
Frequency Min: 6.0 GHz
Frequency Max: 12.0 GHz
Phase States: 0° / 180º
Insertion Loss: 2.5 dB typ., 3.0 dB max.
VSWR: 2.5:1 Max
Control Type: TTL
Speed: 50 ns typ. On/Off
Carrier Suppression: 20 dB typ.

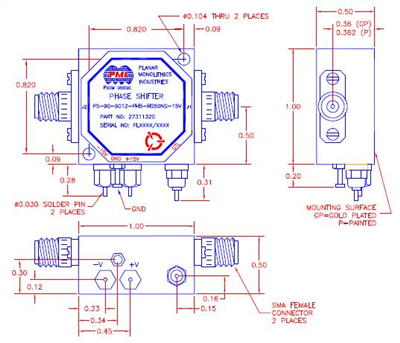

Size: 1.0" x 1.0" x 0.5"
Weight: <2 oz.
Finish: Painted Blue
VSWR Input: 2.0:1 typ., 2.5:1 max.
Operating Input Power: +20 dBm (Operating)
Maximum RF Input: 0.5 W CW, 1 us Pulse Width Survival
Power Plus: +15 VDC @ 75 mA max.
Power Minus: -15 VDC @ 20 mA max.
Environmental Ratings:
Temperature (Operating): -55°C to +85°C
Temperature (Storage): -65°C to +125°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
