PS-90-2040E Active

Bi-Phase Modulator / Phase Shifter

PS-90-2040E
Outline Drawing
Additional Documents

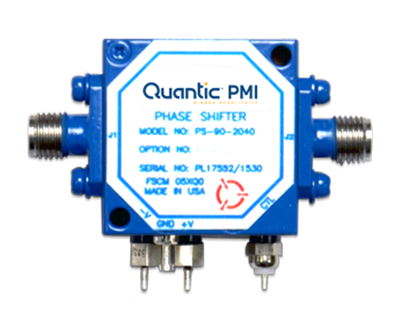

Quantic PMI Model PS-90-2040E is a 0 to 180°, Miniature, Bi-Phase Modulator / Phase Shifter with TTL Control Logic (ECL Logic is available) operating over a frequency range of 1.5 to 4.5 GHz with a maximum insertion loss of 3 dB and VSWR of 2.0:1. This model provides two phase states, namely 0° and 180° and is controlled via single line TTL. The phase state is switched in 75 ns or less and can handle input power levels up to 20 dBm CW. DC voltage requirement is +5 and -12 VDC. Supplied in a package measuring 1.0" x 1.0" x 0.5" with SMA feamle connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1.5 to 4.5
Frequency Min (GHz): 1.5
Frequency Max (GHz): 4.5
Insertion Loss (dB): 2.5 dB Typ,
3 dB Max
Phase States: 0° / 180°
VSWR: 2.0:1
Control Type: TTL
Speed: 75 ns Max On/Off
Input Power: 20 dBm Operating
Input Power (Survival): 0.5 W CW, 1 µs Pulse Width
Carrier Suppression: 20 dB Typ
Power Supply: +5 VDC @ 75 mA Max,
-5 VDC @ 20 mA Max
RF Connectors: SMA Female
Size: 1.0" x 1.0" x 0.5"
Weight: <2 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
