PS-2931-292FF Preliminary

Product Feature

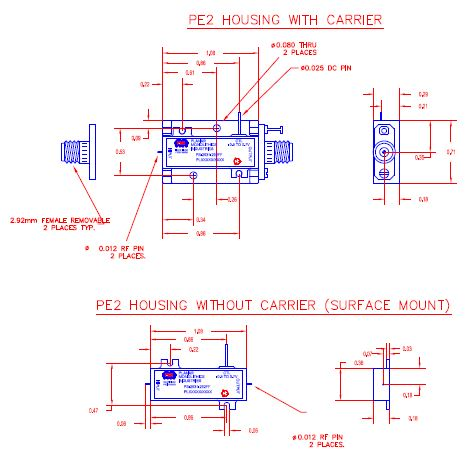

PMI Model No. PS-2931-292FF is a 29.0 to 31.0 GHz Analog Phase Shifter. This phase shifter is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 29.0 to 31.0 GHz
Frequency Min: 29.0 GHz
Frequency Max: 31.0 GHz
Phase Shift Range: 0° to 360° max.
Control Voltage: -0.5 to +0.7 VDC @ 20 mA max.
RF Input Power: 20 dBm max.
Insertion Loss: 10 dB max.
Return Loss (In/Out): 5 dB max.
Environmental Ratings:
Temperature (Operating): -40°C to +85°C
Temperature (Non Operating): -65°C to +150°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
