PREF-10M-20DBM Active

10 MHz Reference Source

PREF-10M-20DBM
Product Feature
Additional Documents

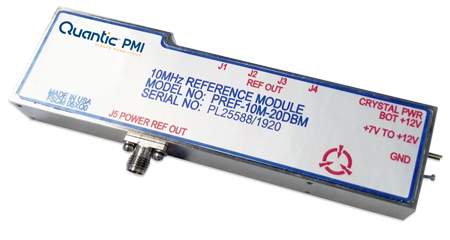

Quantic PMI Model PREF-10M-20DBM is a 10 MHz reference source with 5 outputs. The power ref out has a 20 dBm output while the 4 reference outputs have a nominal 3 dBm output. This unit is designed to provide a multi-output reference source in a system requiring multiple 10 MHz reference sources at the same time, all having the same stability and phase noise. Package size is 4.60" x 1.35" x 0.70".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.01 ±1 Hz
Power Out (dBm): Power REF OUT (J5): 20 to 25 dBm,
Ref Out (J1-J4): 3 ± 3 dB
Phase Noise: 100 Hz: -130 dBc/Hz,
1 kHz: -150 dBc/Hz,
10 kHz: -155 dBc/Hz
Stability: ±0.1 ppm
Aging: ±100 ppb (Yearly)
Output VSWR: 2:1 Max
DC Power: Crystal PWR BOT +12 VDC: +12 VDC @ 300 mA
(3 min warmup),
+12 VDC @ 200 mA (Steady State)
+7 VDC: +7 VDC @ 200 mA
Output Connectors: J1-J4 Ref Out: SMPM Male
J5 Power Ref Out: SMA Female - Field Replaceable
Size: 4.60" x 1.35" x 0.70"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -40 °C to +85 °C
Humidity: MIL-STD-810, 0 to 95% Non-Condensing
Shock: MIL-STD-810, 516.6 Compliant, 20G, 11 ms Duration
Vibration: MIL-STD-810, Method 515, Fig. 3 (Non-Op)
Altitude: MIL-STD-810, 15, 000 ft.
