PMC-9D5G10D1G-7D6-SFF Active

Monopulse Comparator

Buy Now

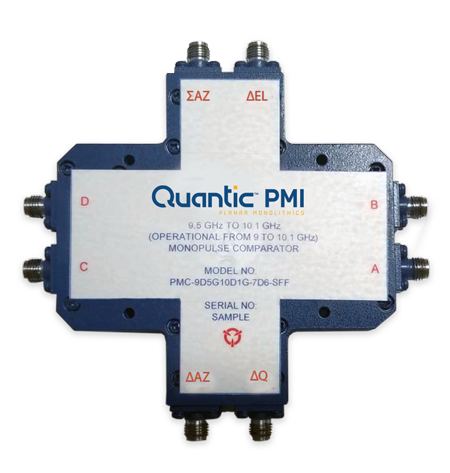

Quantic PMI Model PMC-9D5G10D1G-7D6-SFF is a Monopulse Comparator operating over the 9.5 to 10.1 GHz frequency range. This model offers a maximum 7.6 dB insertion loss while maintaining a maximum amplitude balance of ±0.5 dB and a maximum phase balance of ±5°.  Housing is 3.48" x 3.48" x 0.43" and has SMA Female Connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 9.5 GHz
Frequency Max: 10.1 GHz
Phase Balance: ±5° Max
Insertion Loss: 7.6 dB Max
Isolation: 20 dB Min
Frequency: 9.5 to 10.1 GHz
Amplitude Balance: ±0.5 dB Max
VSWR: 1.5:1 Max
Impedance: 50 Ohm
Power Handling: Average: 10 Watt Max (Ports A, B, C & D)
Peak: 0.1 kW Max
Connectors: SMA Female
Finish: Painted Blue
Size: 3.48" x 3.48" x 0.43"
88.49 mm x 88.49 mm x 11 mm
Environmental Ratings:
Temperature: -55 °C to +85 °C (Operating),
-65 °C to +125 °C (Storage)
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
