PM2-16-118R5-23-15-SFF Active

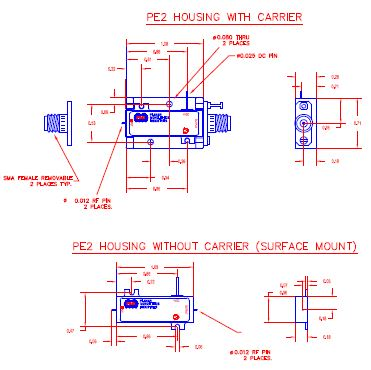

Quantic PMI Model PM2-16-118R5-23-15-SFF is a 1 to 18.5 GHz low noise amplifier with a gain of 16 dB; 8.5 dB noise figure; gain flatness is ±1.5 dB; OP1dB of 22 dBm; and a 2.0:1 maximum VSWR.  This amplifier is supplied in our standard PE2 housing that can be used as a SMA connectorized or a surface mount component.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 18.5
Frequency Min (GHz): 1
Frequency Max (GHz): 18.5
Gain (dB): 16 dB Typ
Gain Flatness: ±1.5 dB Max
Noise Figure (dB): 8.5 dB Max
OP1dB (dBm): 22 dBm Min
VSWR In/Out: 2.3:1 Max
DC Voltage (VDC): +12 to +15 VDC
DC Current (mA): 800 mA
Connectors: SMA Female - removable
Size: PE2
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
