PLNA-1G2G-40-1DB-14DBM-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model PLNA-1G2G-40-1DB-14DBM-SFF is a low noise amplifier that operates over the frequency range of 1 to 2 GHz. It has a typical nominal SS gain @ 25 °C of 40 dB and a typical gain flatness of ±1 dB. This model' housing size is 1.5" x 0.65" x 0.375" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 1 to 2
Frequency Min (GHz): 1
Frequency Max (GHz): 2
Gain (dB): 37 dB Min,
40 dB Typ,
43 dB Max
Gain Flatness: ±1 dB Typ
Noise Figure (dB): 0.8 dB Typ, 1 dB Max (@ 25 ºC)
OP1dB (dBm): 14 dBm Min, 16 dBm Typ
VSWR In/Out: 1.3:1/1.6:1 Typ
DC Voltage (VDC): +10 to +15 V
DC Current (mA): 135 mA Max
Input Power: 13 dBm CW Max
Connectors: SMA female - removable

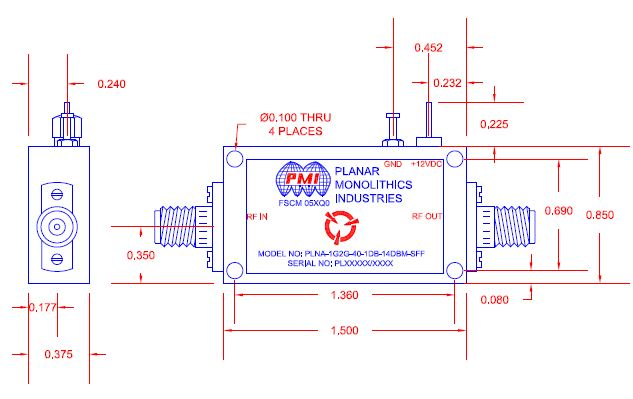

Size: 1.5" x 0.65" x 0.375"
Finish: Nickel Plated
Environmental Ratings:
Temperature: -40 °C to +85 °C Operating
-55 °C to +125 °C Storage
Humidity: MIL-STD-202, METHOD 103B COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
