PLDRO-19D050G-25M-EXT-ROHS Active

Phase Locked Oscillator (PLDRO)

PLDRO-19D050G-25M-EXT-ROHS
Product Feature

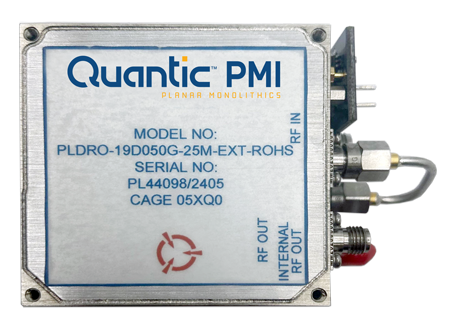

Quantic PMI Model PLDRO-19D050G-25M-EXT-ROHS is a PLDRO with an output frequency of 19.05 GHz with an output power of 13 to 15 dBm. This model is outfitted with SMA connectors. This model has SMA female connectors and measures 2.25" x 2.25" x 1.41". ROHS compliant.

Product Specifications

General Parameters:
Status: Active
Output Frequency - fo (GHz): 19.05
Output Power (dBm): 13 to 15 dBm
Spurious: -76 dBc Max
Harmonics: -20 dBc Max
Reference Input Power: 10 ± 3 dBc
Reference Frequency: 25 MHz
VSWR: 3.0:1 Min
DC Supply: +12 ± 0.5 VDC, 450 mA Max
DC Power: +12 ± 0.5 VDC, 500 mA Max
Lock Indicator: TTL High for In-Lock
TTL Low for Out-of-Lock
Connectors: SMA Female
Size: 2.25" x 2.25" x 1.41"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to 75 °C
