PLDRO-18D750-25M-EXT-ROHS
Preliminary
Phase Locked Oscillator (PLDRO)
Quantic PMI Model PLDRO-18D750-25M-EXT-ROHS is a PLDRO with an output frequency of 18.75 GHz with an output power of 13 to 15 dBm. This model has SMA female connectors and measures 2.25" x 2.25" x 1.41". ROHS Compliant.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Output Frequency - fo (GHz): | 18.75 |
|---|
| Output Power (dBm): | 13 to 15 dBm |
|---|
| Spurious: | -80 dBc Max |
|---|
| Harmonics: | -20 dBc Max (Output) |
|---|
| Reference Input Power: | 7 ± 3 dBc |
|---|
| Reference Frequency: | 25 MHz (External) |
|---|
| DC Power: | +12 ± 0.5 VDC, 450 mA Max
(500 mA Max @ Cold Temp) |
|---|
| Lock Indicator: | TTL high for In-Lock
TTL low for Out-Of-Lock |
|---|
| Connectors: | SMA Female |
|---|

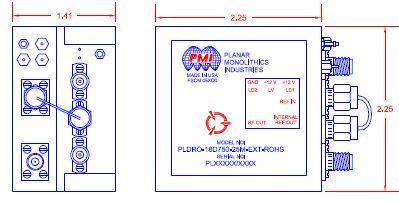

| Size: | 2.25" x 2.25" x 1.41" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to 75 °C |
|---|
