PLDRO-18D6G-25M-EXT-ROHS Active

Phase Lock Oscillator (PLDRO)

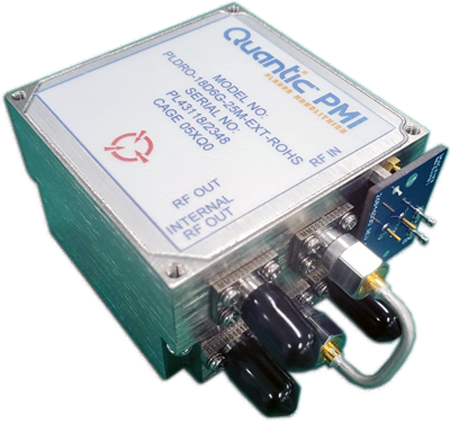

PLDRO-18D6G-25M-EXT-ROHS
Product Feature

Quantic PMI Model PLDRO-18D6G-25M-EXT-ROHS is a PDRO with an output frequency of 18.6 GHz and a minimum output level of 13 dBm. Housing size is 2.25" x 2.25" x 1.41" with SMA connectors.  RoHS complaint.

Product Specifications

General Parameters:
Status: Active
Output Frequency - fo (GHz): 18.6
Output Power (dBm): 13 to 15 dBm
Spurious: -76 dBc Max
Harmonics: -20 dBc Max
Reference Input Power: 10 ± 3 dBc
Reference Frequency: 0.025 GHz
VSWR: 3.0:1 Min
DC Supply: +12 ± 0.5 VDC, 500 mA Max
DC Power: +12 ± 0.5 VDC, 500 mA Max
Lock Indicator: TTL High for In-Lock
TTL Low for Out-of-Lock
Connectors: SMA Female
Size: 2.25" x 2.25" x 1.41"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -50 °C to 75 °C
