PLDRO-18D2G-25M-EXT-ROHS Active

Phase Locked Oscillator (PLDRO)

PLDRO-18D2G-25M-EXT-ROHS
Product Feature

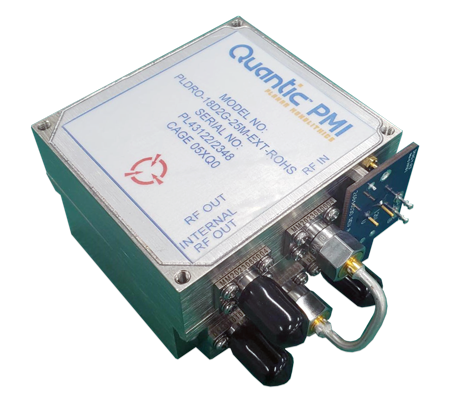

Quantic PMI Model PLDRO-18D2G-25M-EXT-ROHS is a PLDRO with an output frequency of 18.2 GHz with an output power of 13 to 15 dBm. This model has SMA female connectors and measures 2.25" x 2.25" x 1.41". ROHS compliant.

Product Specifications

General Parameters:
Status: Active
Output Frequency - fo (GHz): 18.2
Output Power (dBm): 13 to 15 dBm
Spurious: -76 dBc Max
Harmonics: -20 dBc Max
Reference Input Power: 10 ± 3 dBc
Reference Frequency: 25 MHz
VSWR: 3.0:1 Min
DC Supply: +12 ± 0.5 VDC, 500 mA Max
DC Power: +12 ± 0.5 VDC, 500 mA Max
Lock Indicator: TTL high for In-Lock
TTL low for Out-of-Lock
Connectors: SMA Female
Size: 2.25" x 2.25" x 1.41"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
