PIA-6D6G-SFF-EXREF Preliminary

Phase Locked Dielectric Resonator Oscillator (PLDRO)

PIA-6D6G-SFF-EXREF
Product Feature

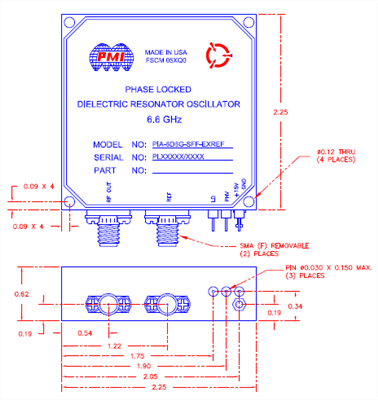

Quantic PMI Model PIA-6D6G-SFF-EXREF is a Phase Locked, Dielectric Resonator Oscillator (PLDRO) covering the frequency of 6.6 GHz with an output power of 13 dBm.  This model is phase locked to an external 10 MHz reference. This model has SMA female connectors and measures 2.25" x 2.25" x 0.62".

Product Specifications

General Parameters:
Status: Preliminary
Output Frequency - fo (GHz): 6.6
Frequency Stability: ±3 ppm
Load VSWR: 1.5:1
Output Power (dBm): 13 dBm Min
Spurious: <-80 dBc
Phase Noise: @ Offset 10 KHz: 20 log N +3 dBc/Hz
@ Offset 100 KHz: -120 dBc/Hz typ.
@ Offset 1 MHz: -140 dBc/Hz typ.
Harmonics: <-25 dBc
External Reference: 10 MHz
VSWR: 1.5:1
Alarm: TTL "1" when Locked
DC Current: 300 mA Max
Supply Voltage: +15 VDC
Connectors: SMA Female
Size: 2.25" x 2.25" x 0.62"
Finish: Nickel
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -25 °C to +70 °C
Non-Operating Temperature: -55 °C to +125 °C
Shock: MIL-STD-202F, Method 213B Cond. B
Humidity: MIL-STD-202F, Method 103B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
