PFS-20G40G PreliMinary

Frequency Synthesizer

PFS-20G40G
Product Feature

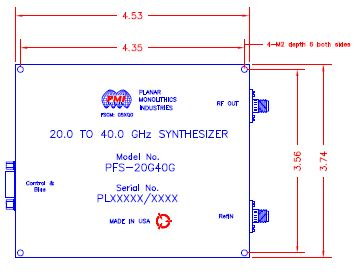

Quantic PMI Model PFS-20G40G is a frequency synthesizer that operates over the 20 to 40 GHz frequency range. This unit features high speed, high accuracy and low phase noise.  Housing measures 4.53" x 3.74" x 0.79" with a standard RS232 9-Pin female Micro-D connector and 2.92mm female connectors.

Product Specifications

General Parameters:
Status: PreliMinary
Frequency Range (GHz): 20 to 40
Frequency Min (GHz): 20
Frequency Max (GHz): 40
Frequency Step Size, Nominal (LSB): 0.2 Hz (20 to 30 GHz),
0.4 Hz (30 to 40 GHz)
Power Output Level (dBm): 10 dBm Min
Frequency Accuracy: ±2x10-7 (or same as external ref)
Spurious Output: -65 Typ / -60 Max (20 to 30 GHz)
-60 Typ /-55 Max (30 to 40 GHz)
Harmonics: -15 dBc TYP
Power Supply: +12 VDC @ 1.4 A (Warm-Up)
+12 VDC @ 1.2 A (Stable)
Phase Nosie: See Product Feature
Control: RS232 / SPI
Output Connector: 2.92mm Female
Size: 4.53" x 3.74" x 0.79"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +70 °C
