PEC-9770M10270M-12-17R5-15-SFF Preliminary

Low Noise Amplifier

Product Feature

Quantic PMI Model PEC-9770M10270M-12-17R5-15-SFF is a 9.77 to 10.27 GHz Amplifier has a maximum noise figure of 12 dB and a OP1dB of 17.5 dBm.  Package size is 3.06" x 1.0" x 1.0" with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 9.77 to 10.27
Frequency Min (GHz): 9.77
Frequency Max (GHz): 10.27
Noise Figure (dB): 12 dB Max
OP1dB (dBm): 17.5 dBm Nom
RF Input Power: -11 ± 1.5 dBm with no damage from removal of input signal, open or short circuit on input cable, or input power variations of ±5 dB from nominal power level
DC Voltage: + 15 VDC ±1%
DC Current Draw: 0.4 ADC Max
Spurious: All in-band, non-harmonically related spurious output signals shall be not < 66 dB below the output signal
Impedance: 50 Ohm nominal, with a maximum VSWR OF 1.5:1, any or all phases
Connectors: SMA Female

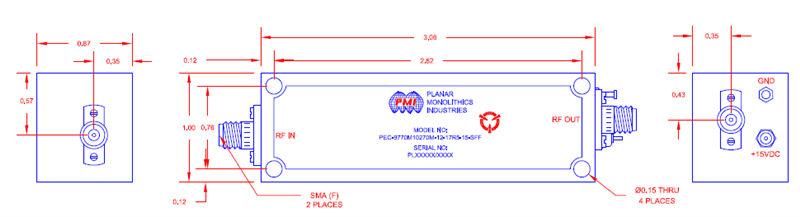

Size: 3.06" x 1.00" x 1.00"
Environmental Ratings:
Temperature (Operating): 0 ºC to +70 ºC
Temperature (Non-Operating): -55 ºC to +75 ºC
Humidity: MIL-STD-202, METHOD 103 COND. B
Shock: MIL-STD-202, METHOD 213 COND. A, EXCEPT 18G IN EACH AXIS
Vibration: MIL-STD-202, METHOD 201 EXCEPT FREQUENCY OF 5 TO 55 Hz, DOUBLE AMPLITUDE OF 0.06 INCH
Altitude: SEA LEVEL TO 10, 000 FEET (OPERATING), 50, 000 FEET MAXIMUM (NON-OPERATING)
