PEC-8G18G-12-16V-SFF Preliminary

Amplifier

Product Feature

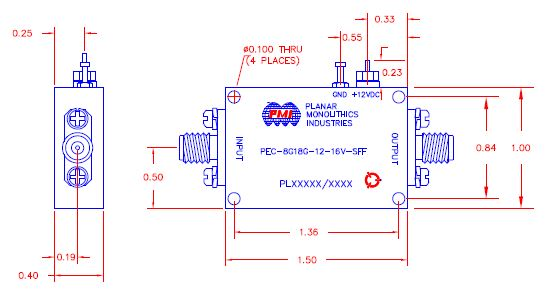

Quantic PMI Model PEC-8G18G-12-16V-SFF is an 8 to 18 GHz amplifier that has a noise figure of 2 dB. This amplifier is supplied with SMA connectors in a housing that measures 1.5" x 1.0" x 0.4".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8 to 18
Frequency Min (GHz): 8
Frequency Max (GHz): 18
Gain (dB): 35 dB Max
Gain Flatness: ±1.25 dB Typ, ±1.5 dB Max
Noise Figure (dB): 2 dB Typ, 2.5 dB Max
OP1dB (dBm): 20 dBm Typ, 22 dBm Min
Psat (dBm): 25 dBm Typ
VSWR In/Out: 1.6:1 Typ, 2.0:1 Max
DC Voltage (VDC): +10 to +18 VDC
DC Current (mA): 250 mA Typ / 320 mA Max
Input Power: 10 dBm
Reverse Isolation: 50 dB Min
P1dB Compression Point: +20 dBm Typ, 22 dBm Min
Connectors: SMA Female
Size: 1.5" x 1.0" x 0.4"
Environmental Ratings:
Temperature: -40 ºC to +85 ºC (Operating)
-55 ºC to +125 ºC (Storage)
Humidity: MIL-STD-202F, METHOD 103B COND B
Shock: MIL-STD-202F, METHOD 213B COND B
Altitude: MIL-STD-202F, METHOD 105C COND B
Temperature Cycle: MIL-STD-202F, METHOD 1070 COND A
